Multiple solutions are available for the connection of cables to high-voltage overhead lines, cables to cables, cables to switchgear and transformer equipment in different environments for medium-voltage transmission, distribution and transformation systems.We also provide cable connection for independent power supply of large power sector such as steel and petrochemical corporation.

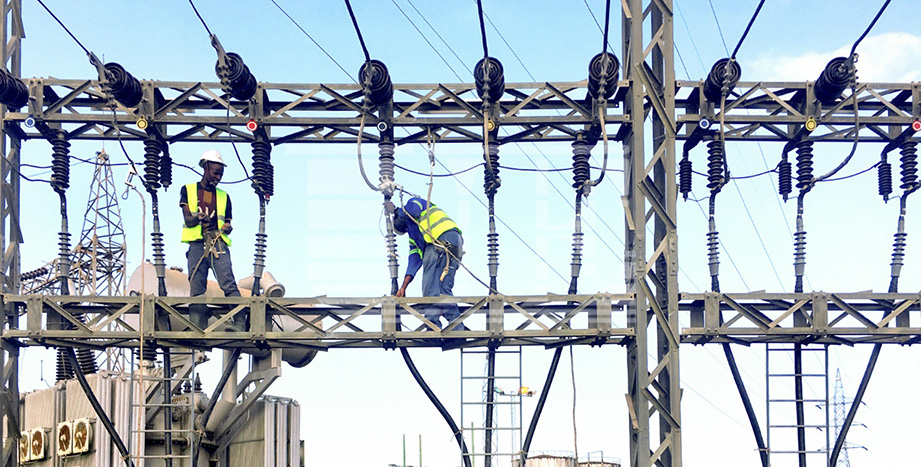

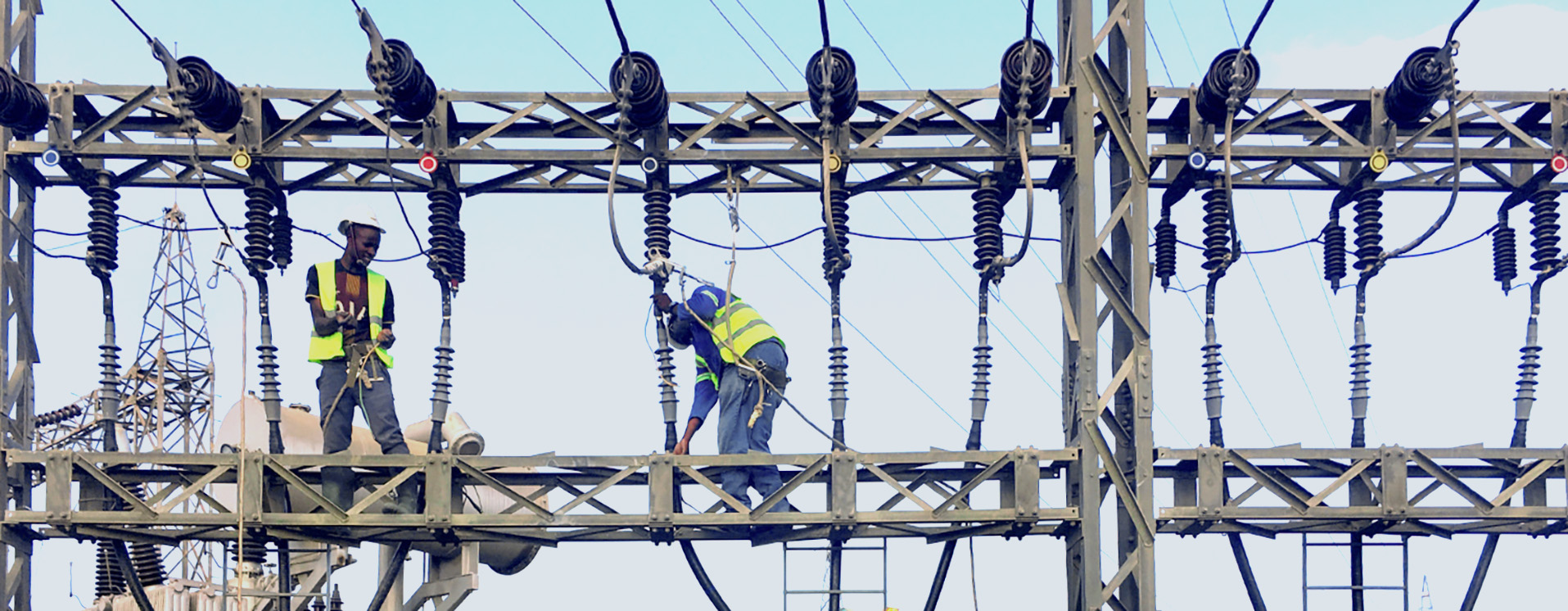

Connection between medium-voltage cable and overhead lines
 | The cable is connected with outdoor overhead line or the bushing equipped with post insulator on the transformer. Indoor terminations will be used in the AIS to connect the incoming and outgoing lines of copper bars. In high altitude areas outdoor terminations will also be used. |

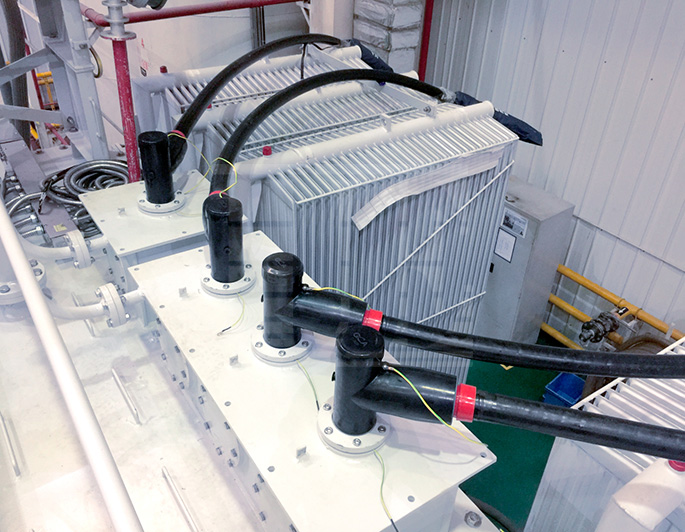

Connection of medium voltage cables to circuit breakers, instrument transformers, transformers, fuses and other electrical equipment

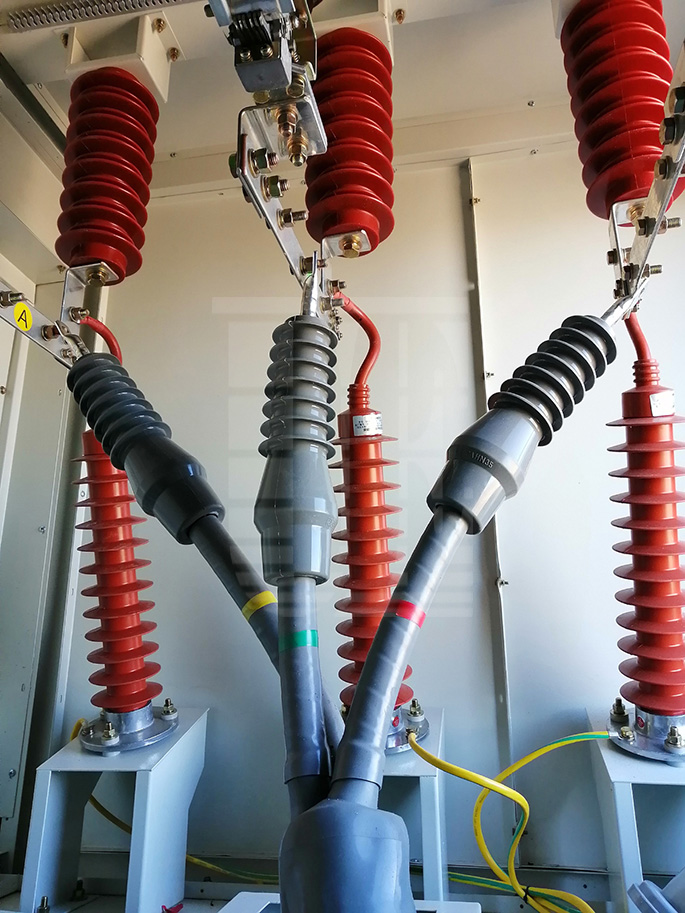

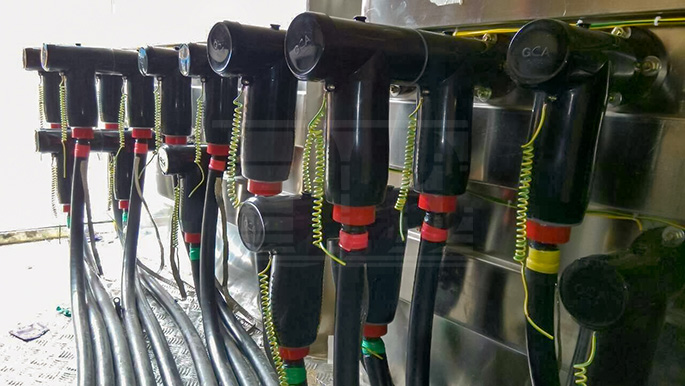

For transformer or other indoor equipment, indoor termination will be used to connect cable to transformer inlet and outlet bushing, as well as to copper bar inlet and outlet in the AIS.  | When the cable connected with switchgear, transformer, circuit breaker, fuse, transformer equipped with inner cone and outer cone wiring bushings, we provide CJB and CBN -series products to realize perfect cable connection of 40.5kV and below voltage for A/B/C/D/E/F bushings, as well as the connection of surge arrester required by the system.  | |

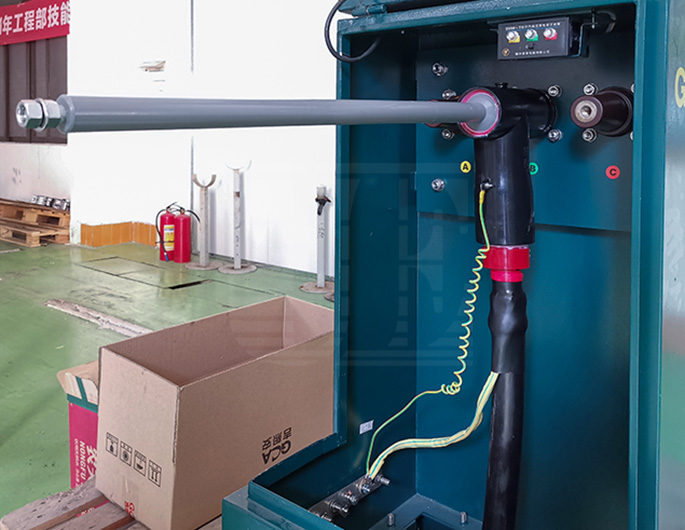

Cable test for installed separable connector We provide solutions for testing cables that have been installed with inner cone or outer cone separable connector  | Inner cone / outer cone equipment test We provide solutions for testing electrical equipment with inner cone or outer cone bushing.  |

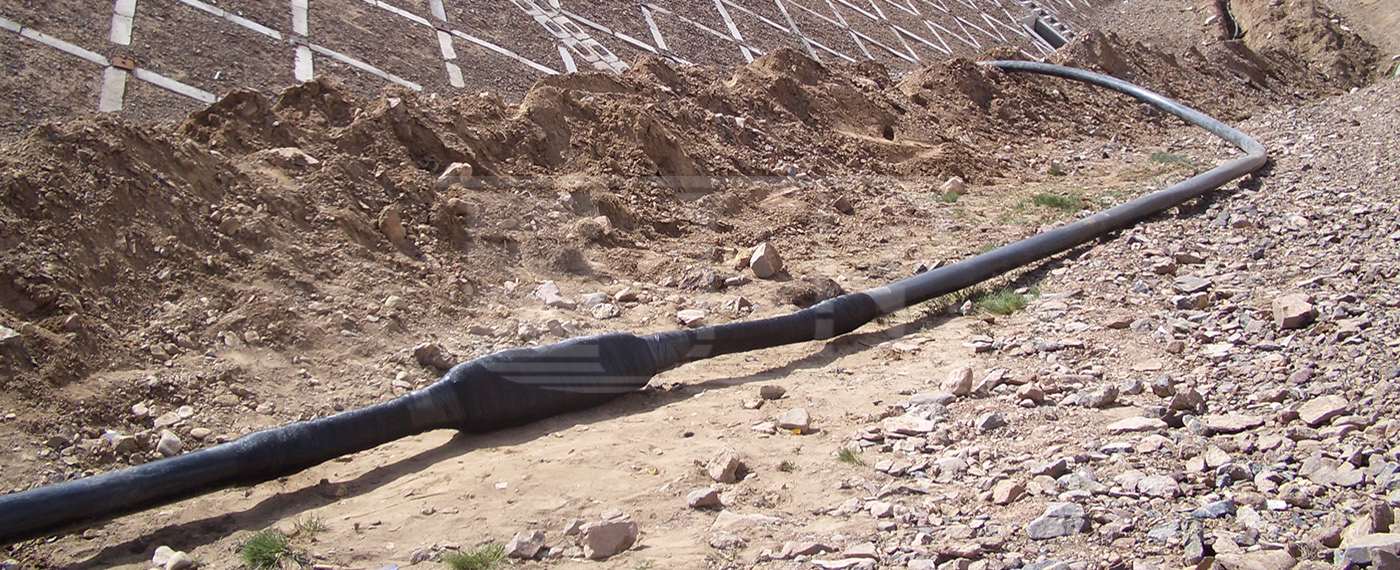

| Jointing between medium-voltage cables |
 |
| Sheath voltage protection of MV power cable accessories |
 |
Insulation protection

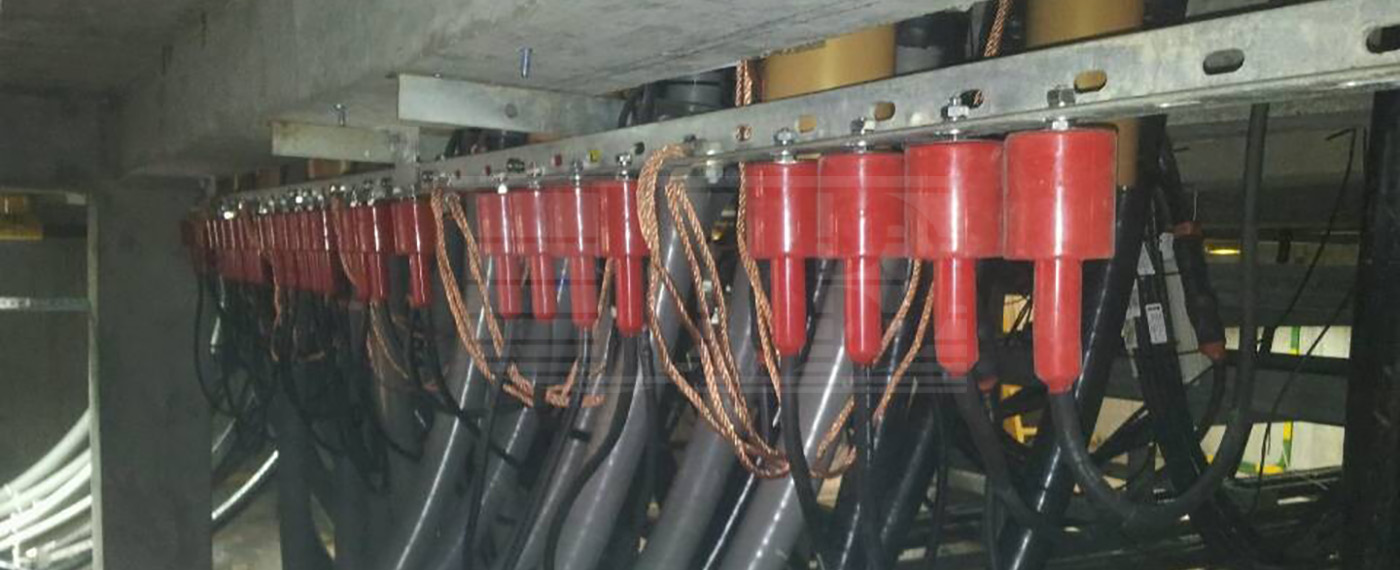

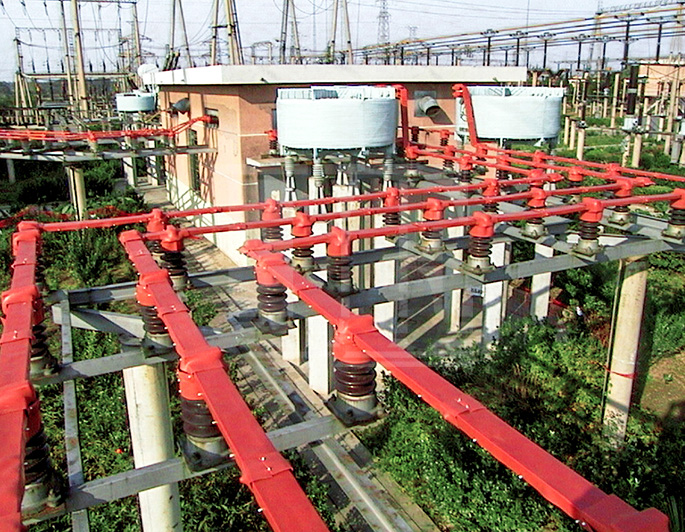

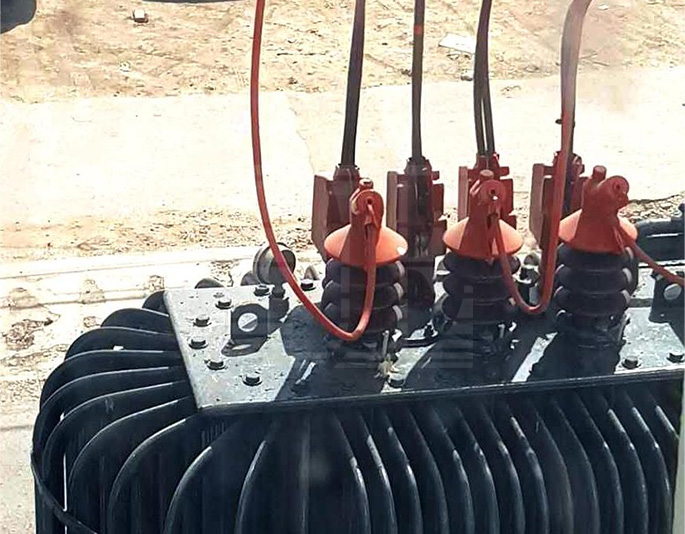

Insulation protection for busbar in substation  | Insulation protection for transformer incoming and outgoing lines and various outdoor switches  | |

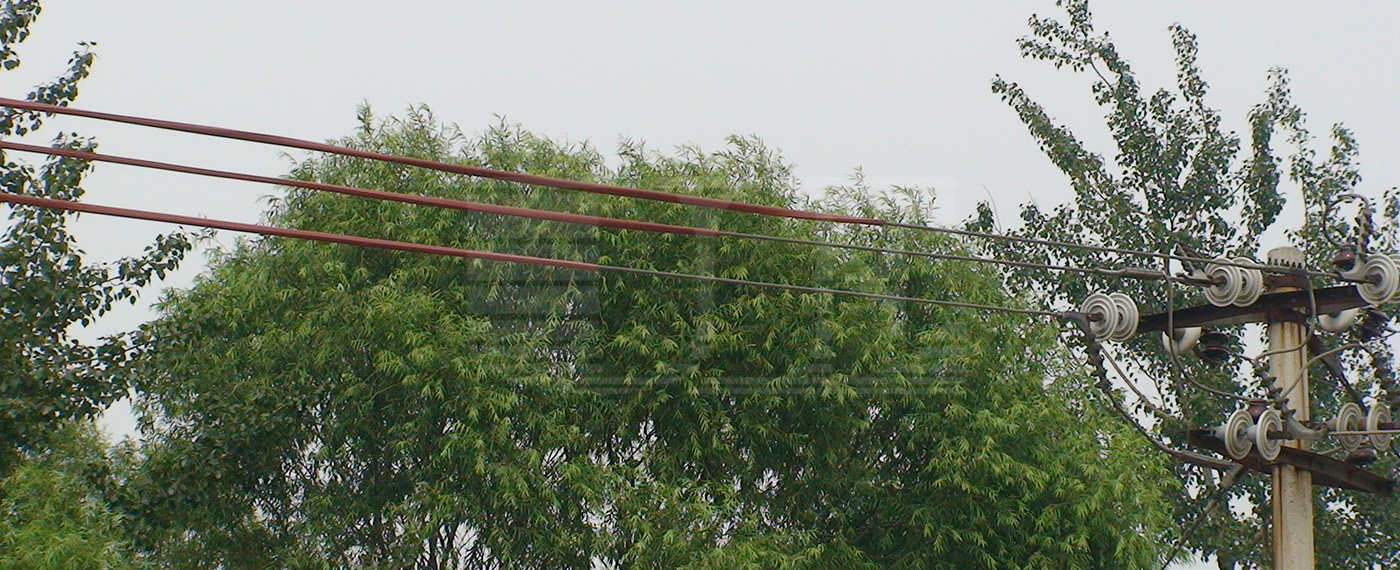

Insulation protection for medium-voltage overhead line  | ||
