Medium voltage Line Cover, UELC

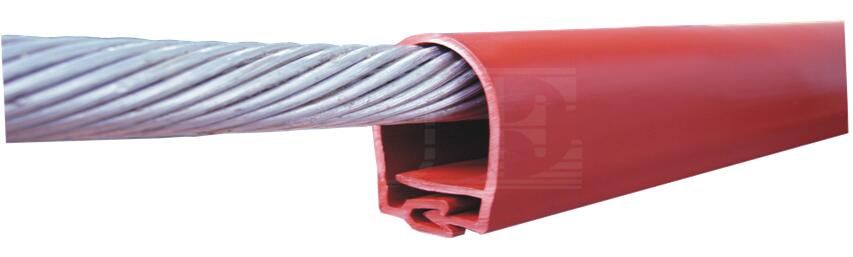

The UELC is an easy applied wrap around cover which provides retrofit insulation for overhead conductors to help prevent electrical outages.
Designed mainly for Medium voltage networks, it provides high quality electrical insulation for substation leads and jumpers electrical insulation. UELC can also be used as insulation supplementary for high voltage networks.

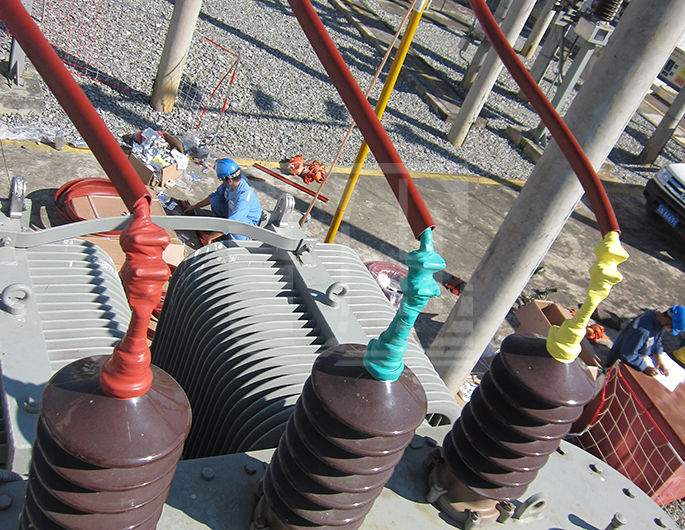

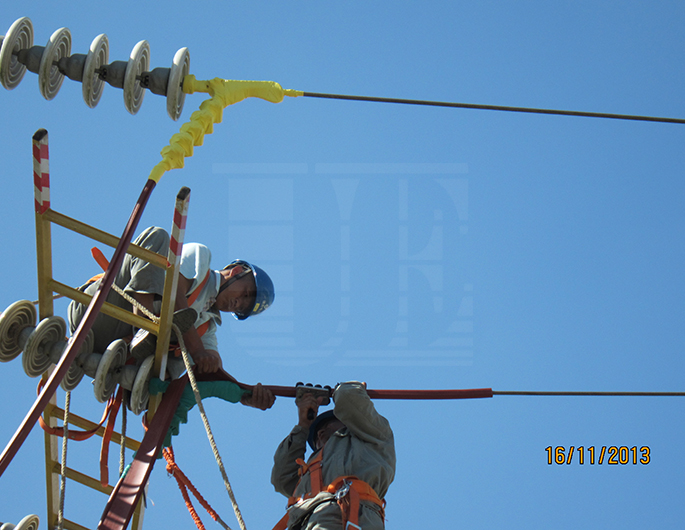

In 2013, UELC installed on 35kV conductor side of 35kV transformer So as to ensure safe insulation protection between 35kV conductors and adjacent objects. | ||
 |  | |

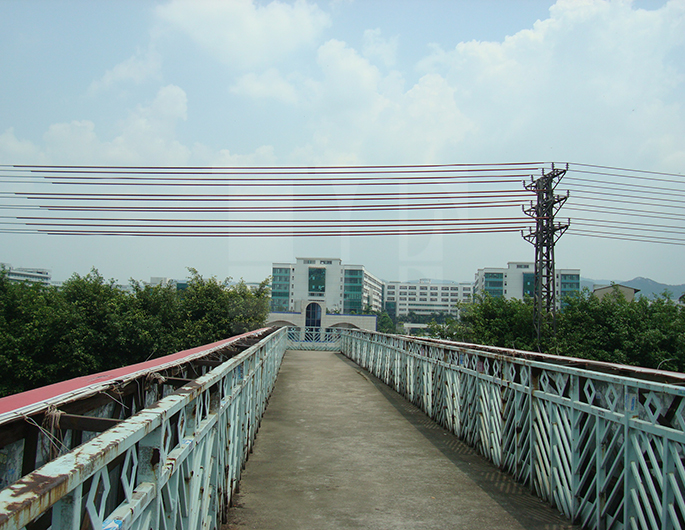

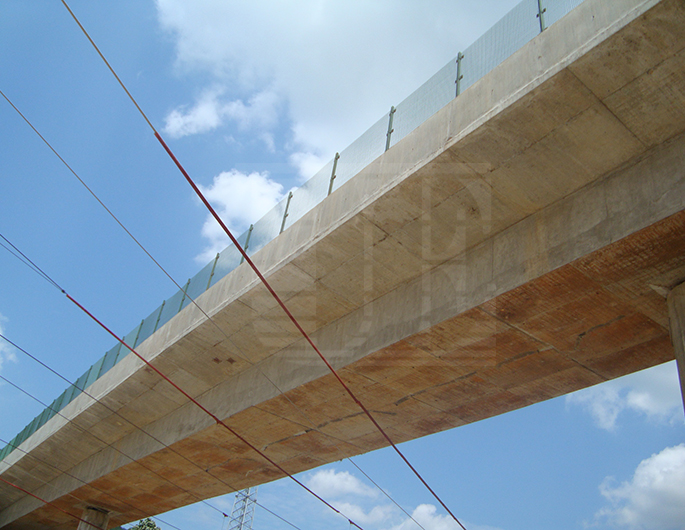

Insulation Protection for the overhead line cross above the footbridge to avoid outage caused by foreign article contact or wire deflected by wind, and protect life of passengers walking in the rain | Overhead conductor of electrification railway system passing under the bridge, use UELC to protect the electrification railway catenary bearing cable. | |
 |  |

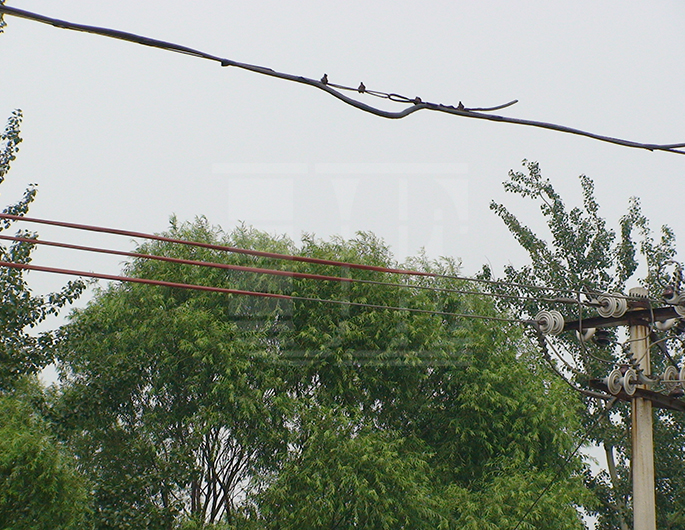

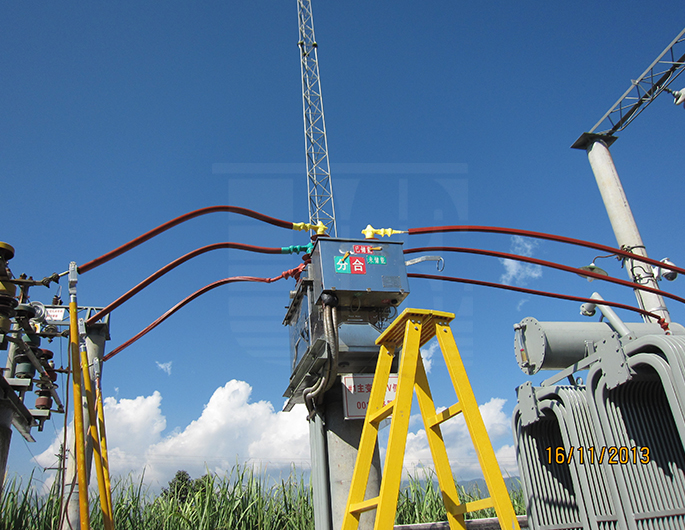

When the overhead line passes through the luxuriant branches, and when the branch falls on the wire, short circuit of the overhead line and power outage may happen. The UELC can solve this problem very well: after installing the UELC to the position where the branches and branches are easy to fall on the wires, the line will be well insulated and protected, so as to avoid the occurrence of power outages. | Use UELC to protect 10kV side of 35kV transformer，a 10kV circuit breaker switch is in the middle. To avoid outage caused by foreign articles or small animals. | |
 |  |
